Heat Exchanger Specifications

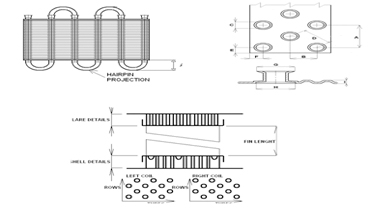

Coil Technical Details
Fin Patterns
7mm Ø x 12.7 mm H x 16.48 mm W, Staggered
9.52 mm Ø x 25.4 mm H x 22.0 mm W, Staggered
12.7mm Ø X 31.75mm H X 28.5mm W, Staggered
15.8mm Ø X 50.8mm H X 38.1mm W, Staggered
15.8mm Ø X 38.1mm H X 38.1mm W, Staggered
FIN SURFACES
7 Ø: Plain, Slit/Luover, V-Waffle
9.52 Ø Plain, Slit/Luover, Sine wave
12.7 & 15.8 Ø : Sine wave
